Sunvine Home AC Charger
Home Series

Sunvine Home AC Charger

A new era in home EV charging. Type 2 AC chargers from 7.4 kW to 11 kW with mobile app, and 4.3-inch LCD display.

Request Quote
Sunvine Home AC Charger
Sunvine EV Charging Sunvine Home AC Charger

EV Product

Sunvine Home AC Charger

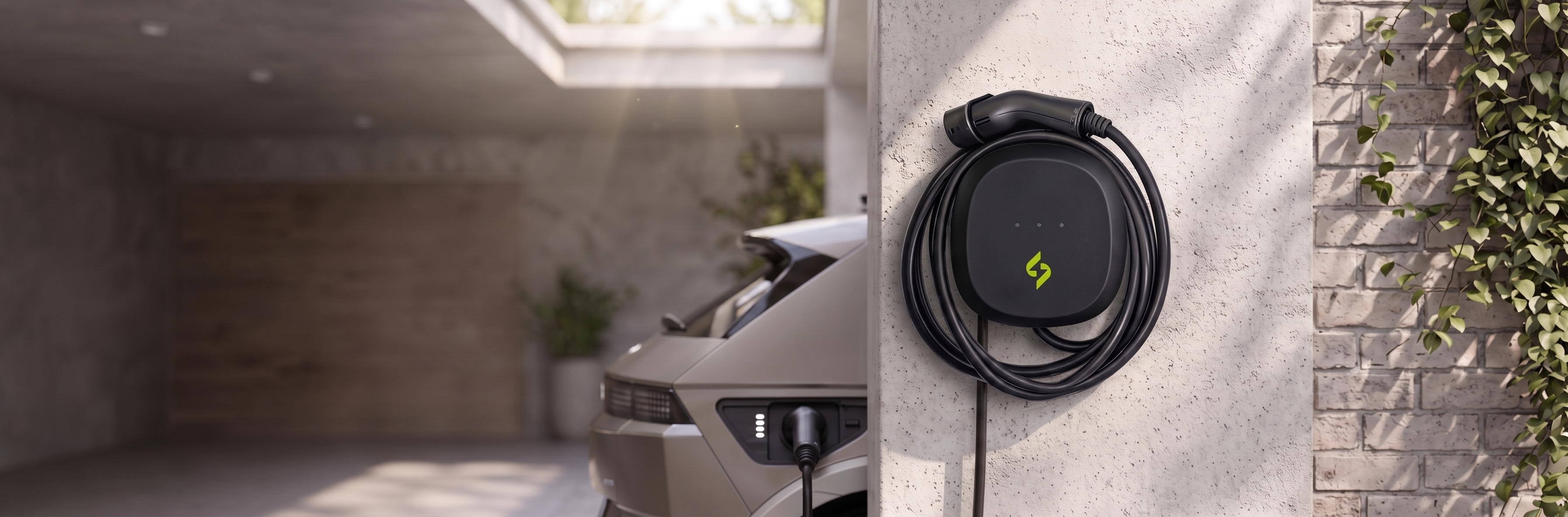

The Sunvine Home AC Charger offers options from 7.4 kW to 11 kW, compatible with all modern EVs via its Type 2 connector. It features a beautifully designed exterior complemented by a 4.3-inch LCD display for easy monitoring, along with advanced features such as RFID authentication and Autocharge for a frictionless charging experience.

7.4 kW / 11 kW AC Home Chargers

Key Highlights

  • Compatible with all modern EVs via Type 2 connector
  • Mobile app authentication & monitoring
  • OCPP 1.6J communication protocol
  • IP65 rated for outdoor installation
  • Operating temperature: -25°C to 55°C
  • Wall or pedestal mounting options

Ideal For

Homes & Apartments Residential Societies Workplace Parking Hotels & Resorts
Request Quote Download Brochure

Technical Details

Specifications

AC Type 2 — 7.4 kW

Input Voltage
230 VAC ±20% (P+N+PE), Single phase
Input Current
32 A
Output Power
7.4 kW
Output Current
32 A

AC Type 2 — 11 kW

Input Voltage
400 VAC ±20% (3P+N+PE), Three phase
Input Current
16 A per phase
Output Power
11 kW
Output Current
16 A per phase

Common Specifications

Connector Type
AC Type 2 cable with vehicle charging connector
Cable Length
5 m
Network Type
Wi-Fi & GSM (3G/4G)
Charging Mode
Mode 3
Communication
OCPP 1.6J
Protection
Overcurrent, Overvoltage, Undervoltage, Leakage current, Surge, Over temperature, Emergency Stop
IP Rating
IP65
Impact Protection
IK10
Altitude
Up to 5500 m
Display
4.3 inch LCD (optional)
LED Indication
Idle, Live, Charging & Fault states

Complete EV Charging Solutions

From home AC chargers to 480 kW highway hubs — Sunvine delivers end-to-end EV charging infrastructure with installation and 24/7 support.
